In several modes, the computer will sweep the SIS bias from around
0 to 5 mV. Depending on the mode, it will either plot junction current or
Total power against voltage. This happens in B-field,
Y-factor and IV sweep modes.

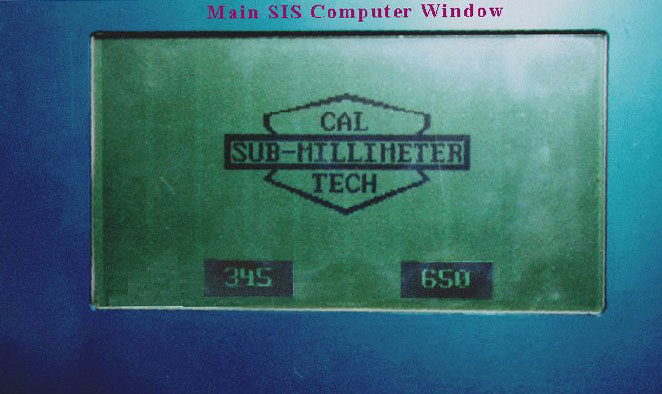

The screen update is quite slow however - the default mode is now
to output these signals to the oscilloscope.
If you want to display it on the
hand-paddle, push the DISP button in the top right hand corner
of the screen.
