1-2 GHz Balanced Low Noise Amplifier/ IF matching network
Last Updated May 5, 2001


Related Memo:

J.W. Kooi

A Design review

     LNA Performance Specifications :

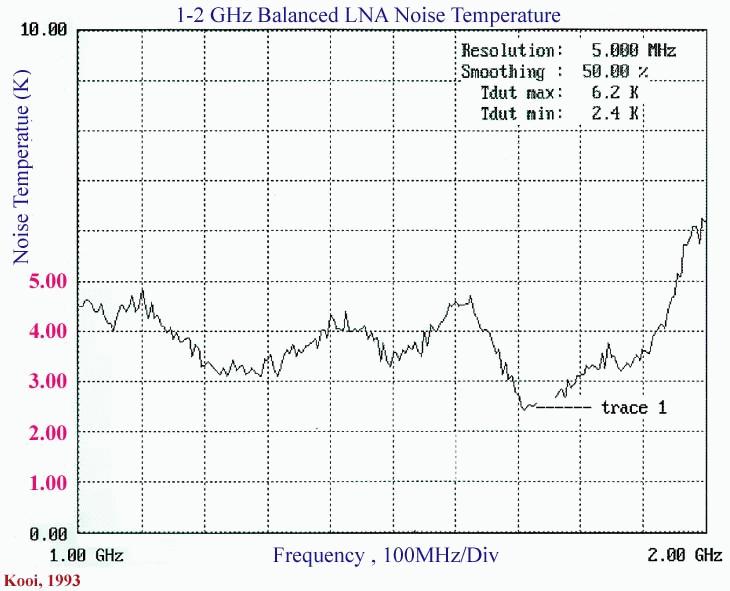

  • Noise temperature from 1-2 GHz at measured 12 Kelvin.

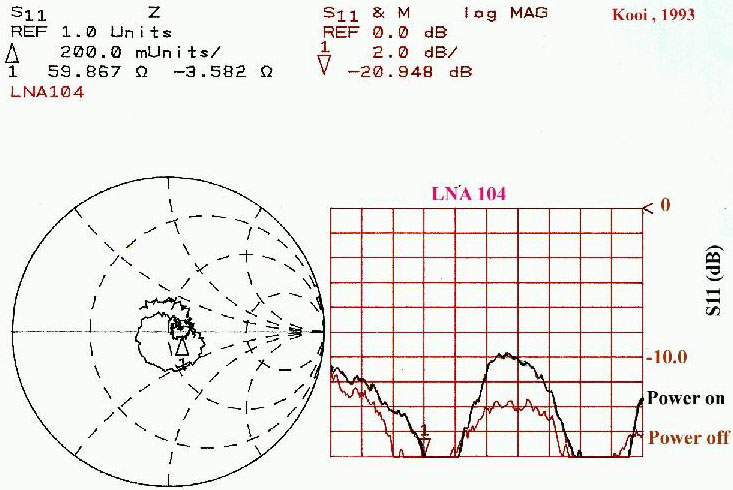

  • Input reflection Coefficient for power up/down conditions(S11).

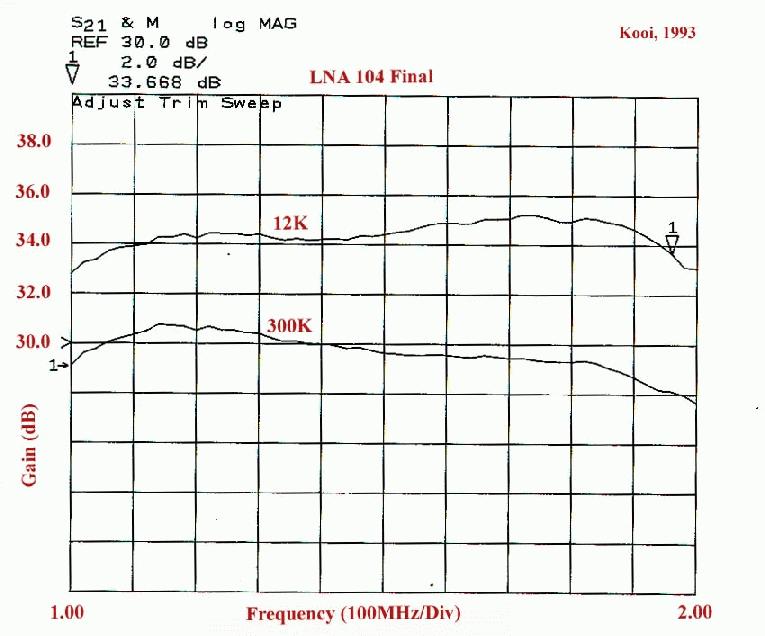

  • Forward gain (S21) measured at 300K and 12K.

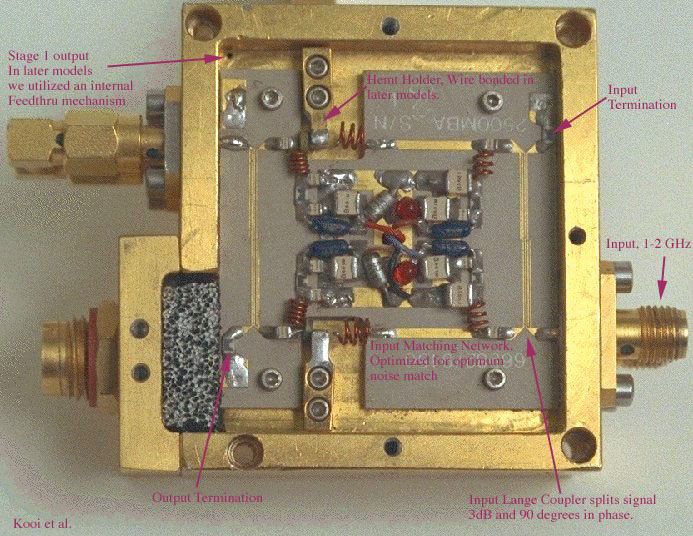

  • 1-2 GHz Balanced LNA, Top view.

         IF Matching Network Related Images :

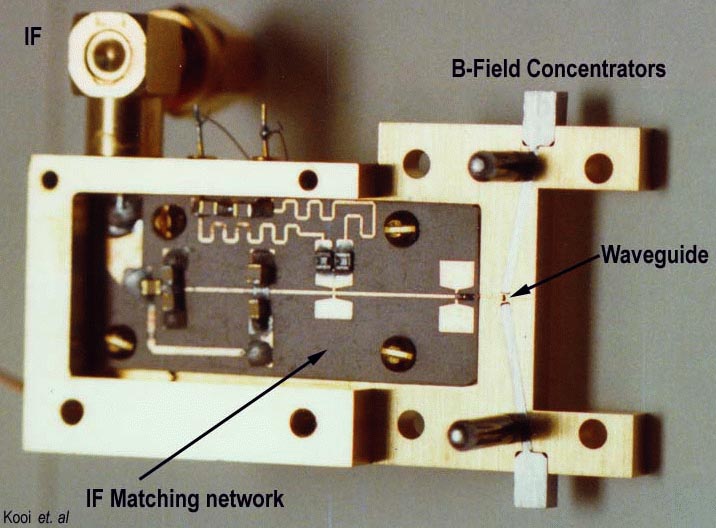

  • 1-2 GHz 2 wire IF matching network in the 230 GHz mixer block.

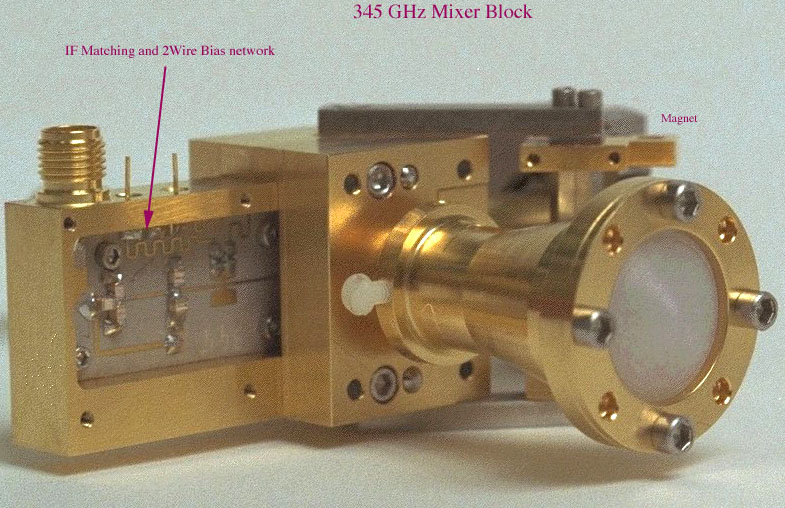

  • 1-2 GHz 2 wire IF matching network in the 345 GHz mixer block.
  • 1-2 GHz 2 wire IF matching network in the 650 GHz mixer block.
  • 1-2 GHz 4 wire IF matching network in the 850 GHz mixer block.

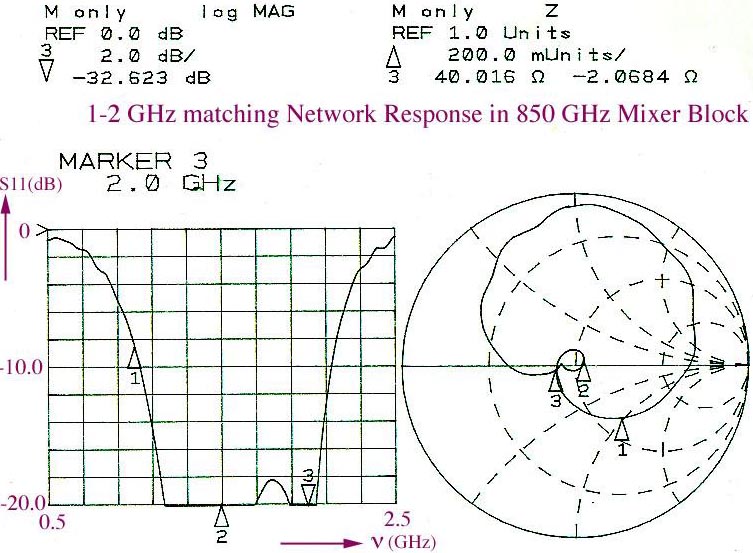

  • Reflection mesurements of matching network terminated into 160 Ohms.

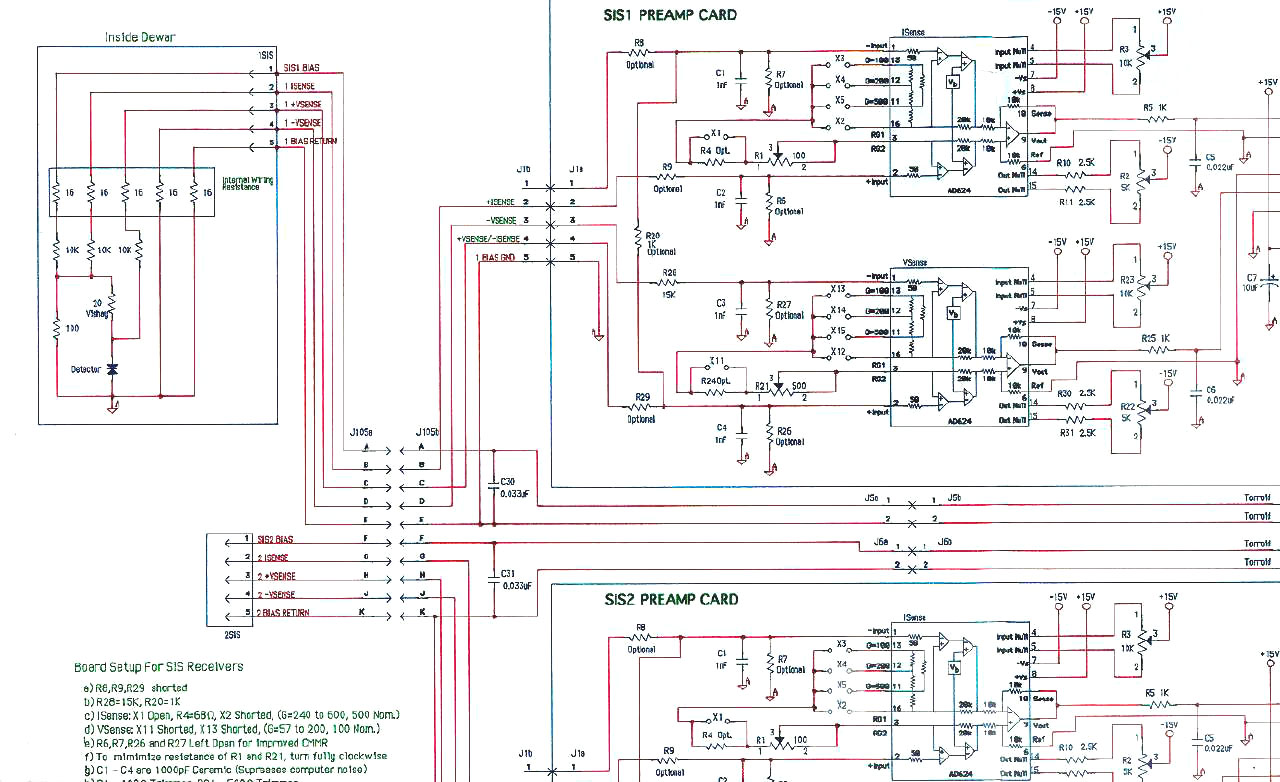

  • Four-wire bias network schematic, large format.

    •
