440-520 GHz Receiver Homepage

492 GHz Mixer Block
Related Papers:
 J.W. Kooi, P.L. Schaffer, B. Bumble, R. LeDuc, and T.G. Phillips

Proceedings International Society of Optical Engineers, Kona, Hawaii, March 1998.

J. W. Kooi, M. Chan, B. Bumble, H. G. Leduc, P.L. Schaffer, and T. G. Phillips,

Int. J. IR and MM Waves, vol. 16, No. 12, pp. 2049-2068, Dec. 1995.

C. K. Walker, J. W. Kooi, M. Chan, H. G. Leduc, P.L. Schaffer, J.E. Carlstrom, and T.G. Phillips,

Int. J. IR and MM Waves, vol. 13, pp. 785-798, June 1992.

Mixer Information

     492 GHz Receiver Tuning Information:

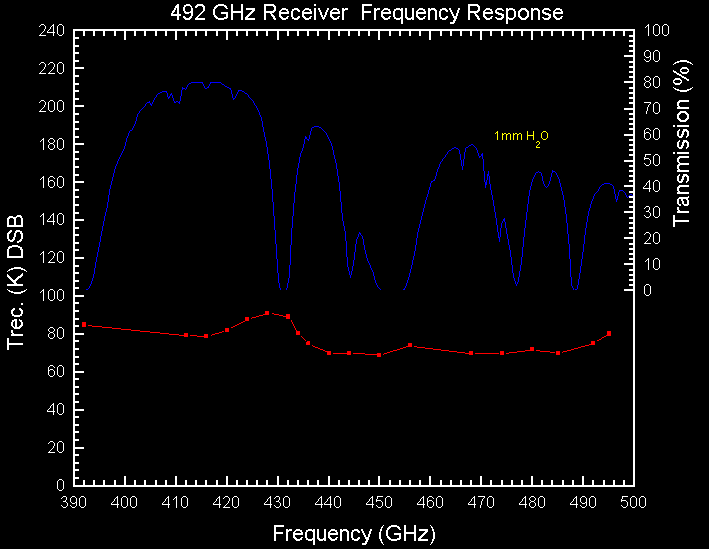

  • Frequency response of the 492 GHz receiver (10.4K)
  • Properly tuned mixer at 492 GHz (10.5K).

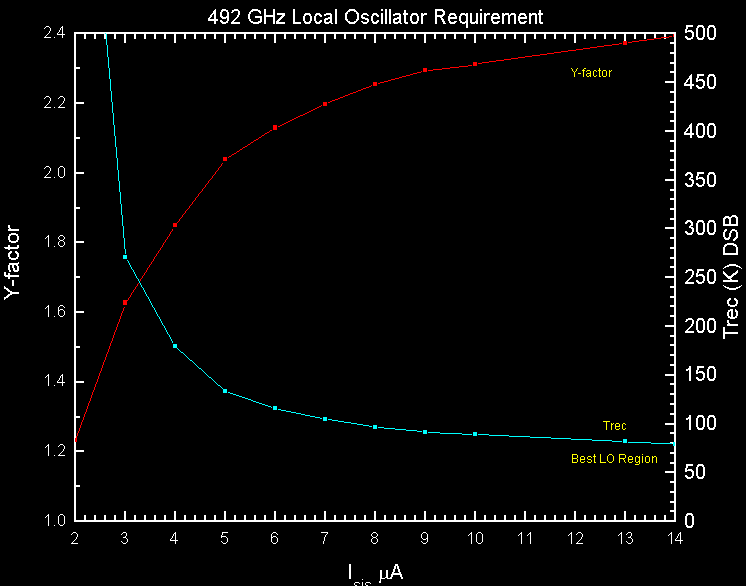

  • Local Oscillator requirement for the 492 GHz receiver (8.5K).

         Junction and RF Matching Network Design:

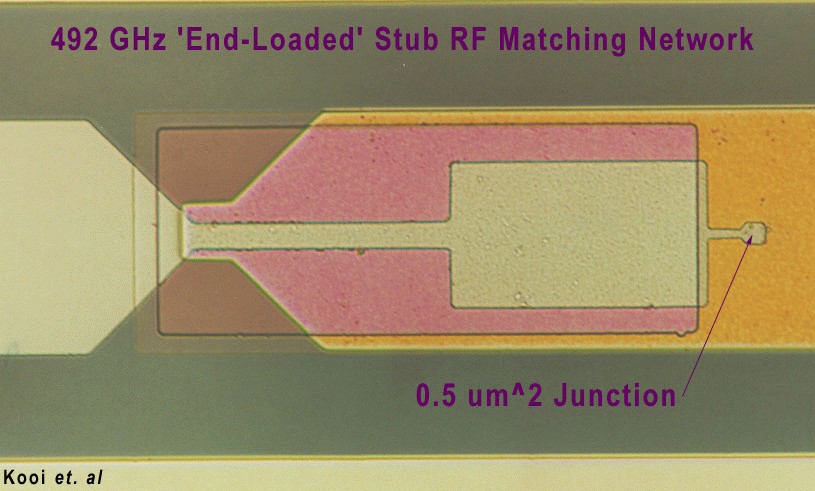

  • 492 GHz Junction (46.6K).

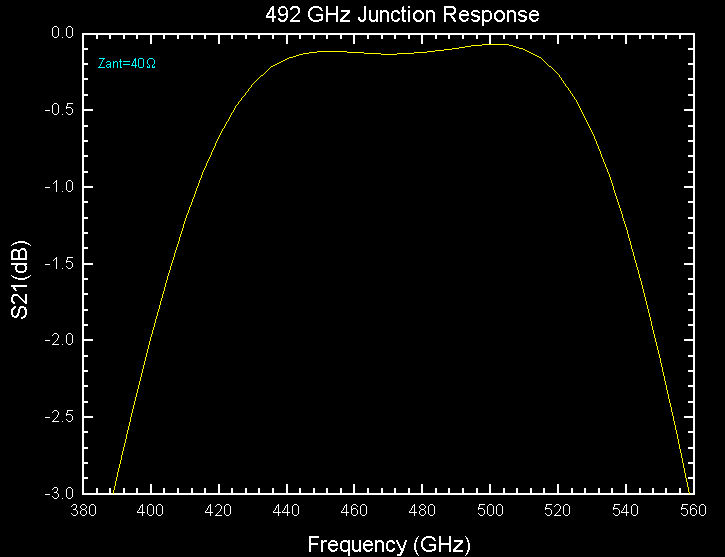

  • RF Power transmission for a 40 ohm Embeding impedance (7.5K).
  • Junction Rf Input Impedance (Smith Chart) (18.7K).

         Optics Loss and Dewar Information:

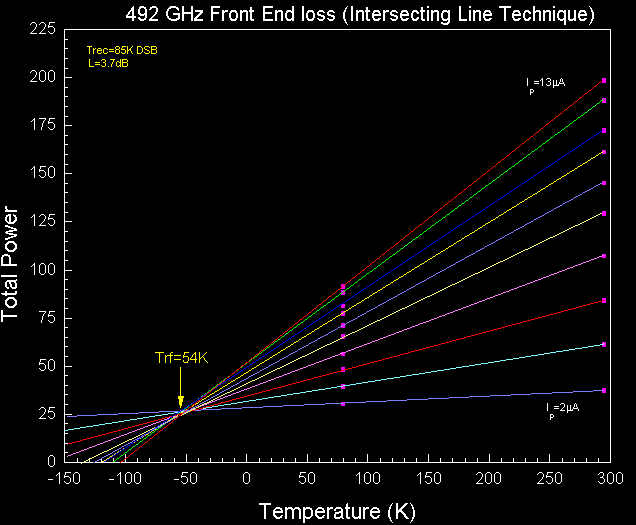

  • Optics loss at 492 GHz using the intersecting lines technique (10.7K).
  • General top view of 345 GHz and 665 GHz mixers mounted on the 4K stage (128K).
