Scale Model Measurements and Simulations


Scale Model with an Er=4.0 (Quartz) Substrate

HFSS and scalemodel measurements overlaid

     Copper ground extending to the Fullheight Waveguide Wall

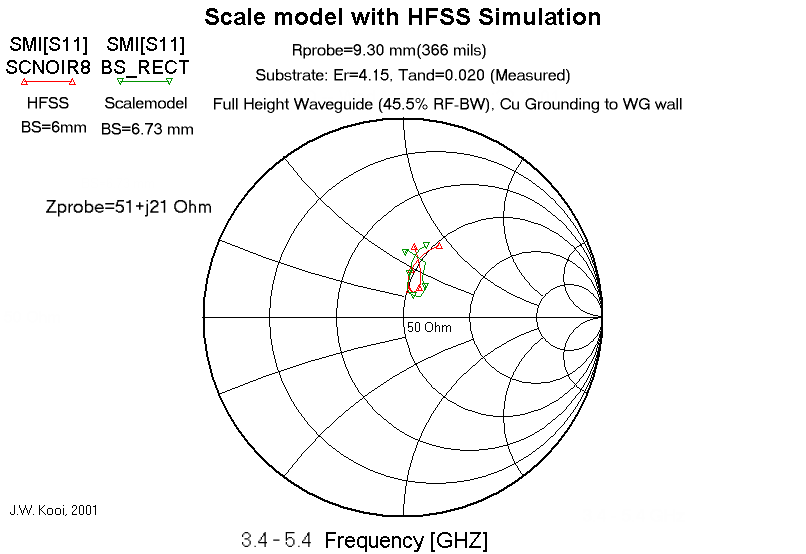

  • Probe Impedance (Smith Chart)

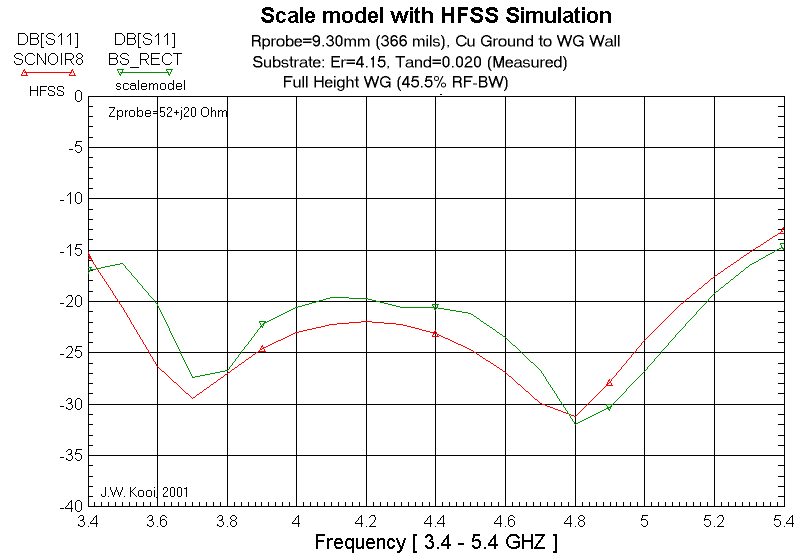

  • Return Loss (dBS11) of radial probe

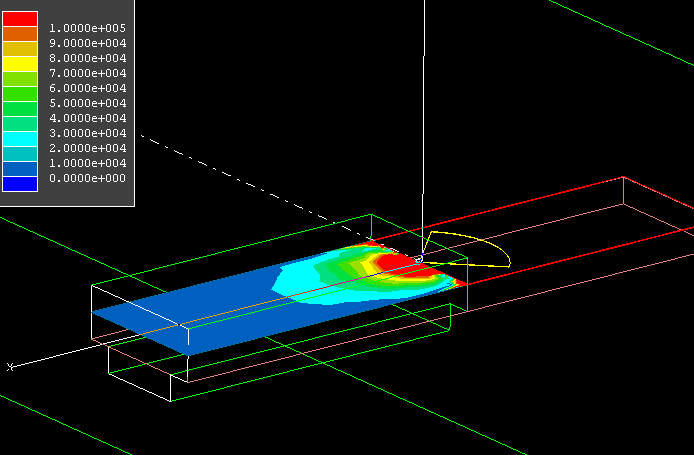

  • Maximum Extend of E-field on the groundplane that extends to the WG Wall

         Effect of adding a 2-Section RF Choke

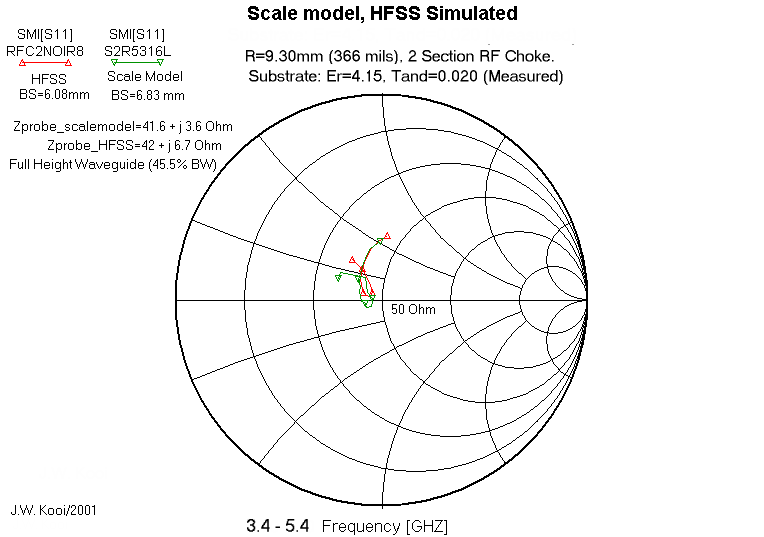

  • Probe Impedance (Smith Chart), note large shift in Probe impedance!

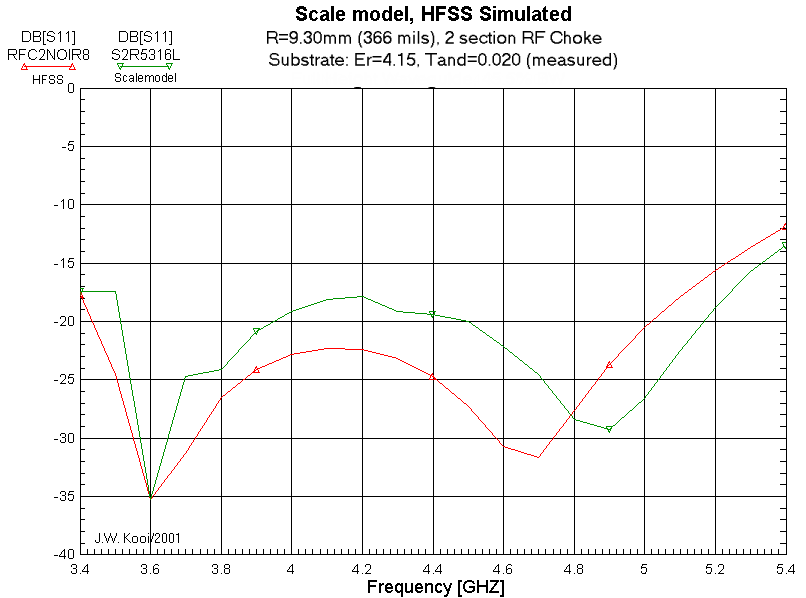

  • Return Loss (dBS11) of radial probe

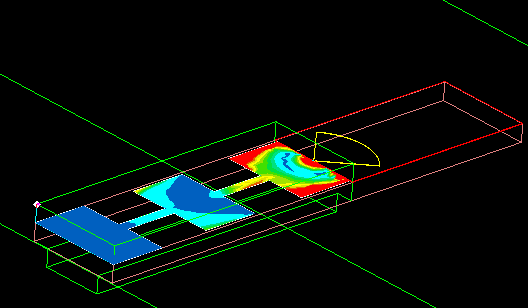

  • Maximum extend of E-field with a 4-section RF Choke

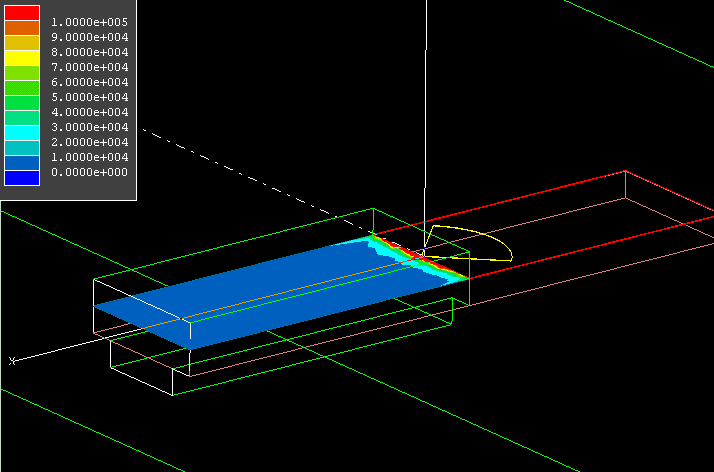

  • Minimum extend of E-field with a 4-section RF Choke

         Usefull Information

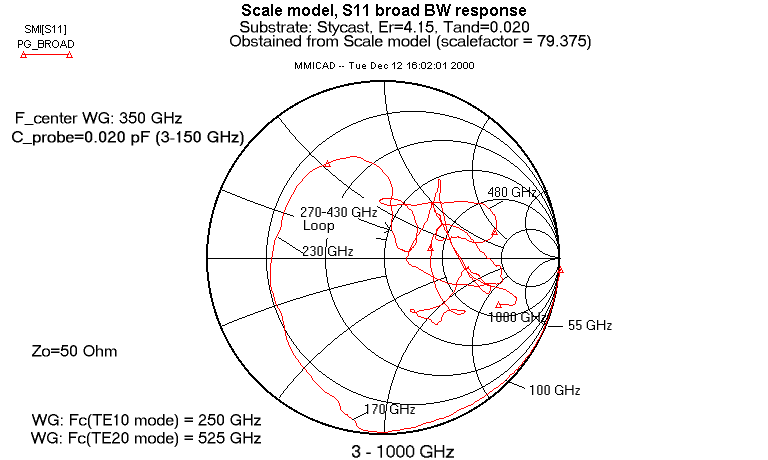

  • Probe impedance from 3-1000 GHz. Below 170 GHz (IF) the WG is in cutoff, and the probe acts like a capacitor.
        Above 430 GHz the probe impedance remains reasonably well behaved and stays > 75 Ω.

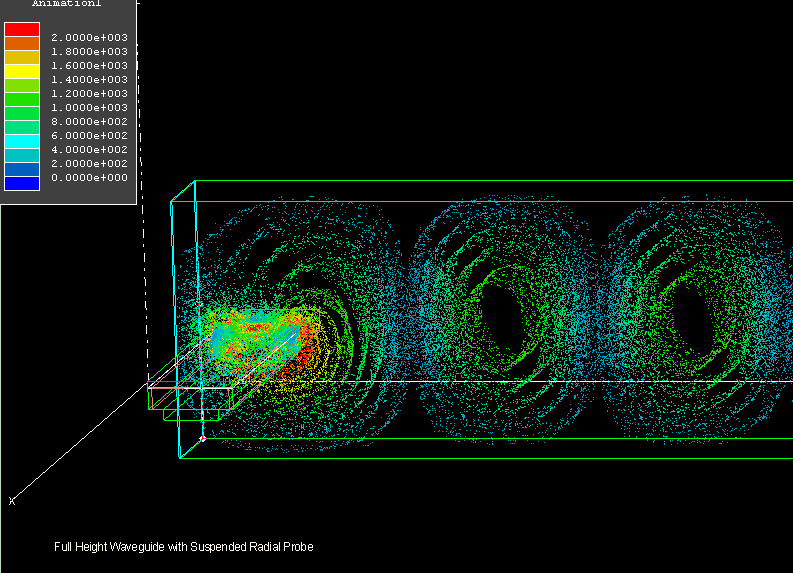

  • E-field inside the Fullheight waveguide with backshort in place.

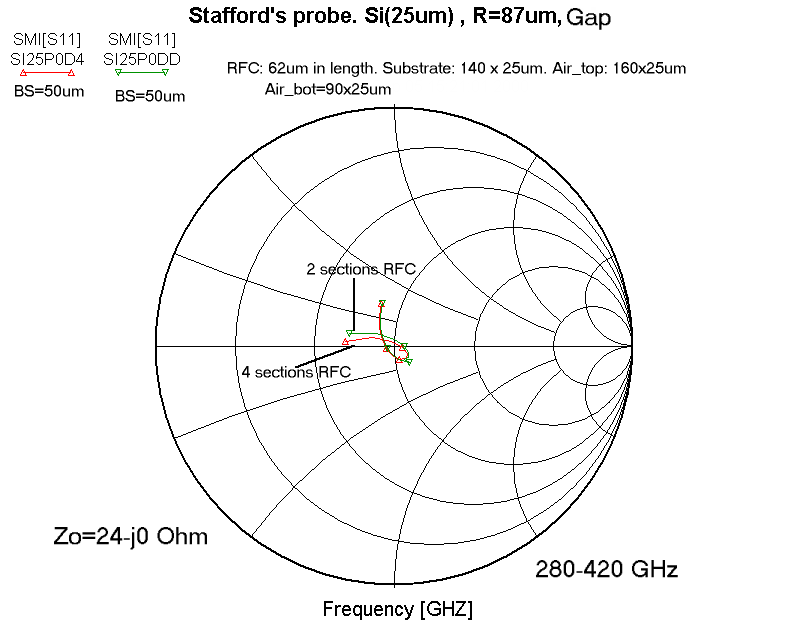

  • Comparison between a 2-Section and 4-Section RF Choke.
