Measurements of Folded Arrays from CSO1 (Batch for SHARC II)

Darren Dowell -- (626)395-6675 (office), -2600 (lab), 796-8806 (FAX)

Last modified Tuesday, 04-Sep-2001 8:30 PDT
cdd@submm.caltech.edu

Measurements at Goddard -- July - September 2001

The primary database for measurements by M. Freund, R. Silverberg, et al. is the Hale FTP server. There are also some early measurements of HAWC1 available.

Further Analysis of Measurements -- September 2001

Wafer Resistance Maps

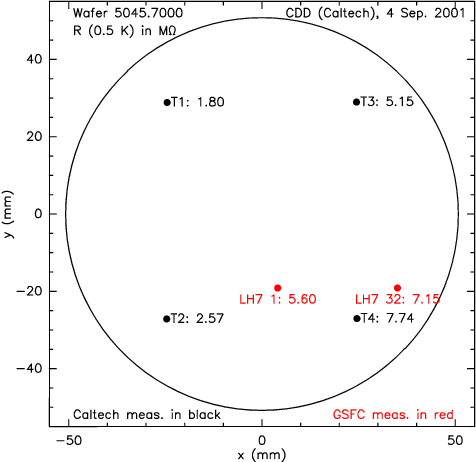

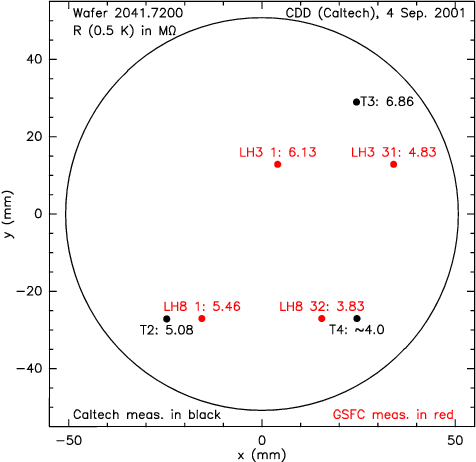

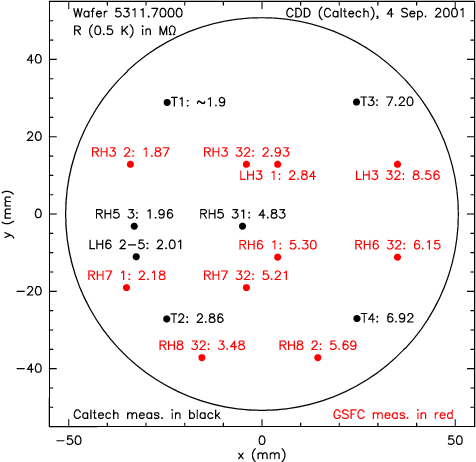

wafer 2041.7200 wafer 2041.7200 wafer 5045.7000 wafer 5045.7000 wafer 5311.7000 wafer 5311.7000

Heat Capacity and Thermal Conductance

The following channels were removed from the graphs due to IV curve fits which stood out as anomalous:
RUN1:      3   8   10 11          20 22 23 24 35             56 57 58 60 61
RUN2:  1     4     10    15       20 22 23 24       39       56          61 64
RUN3:    2       9 10       16 17 20 22 23 24       39 47 52 56          61
RUN4:              10             20 22 23 24    36 39       56          61

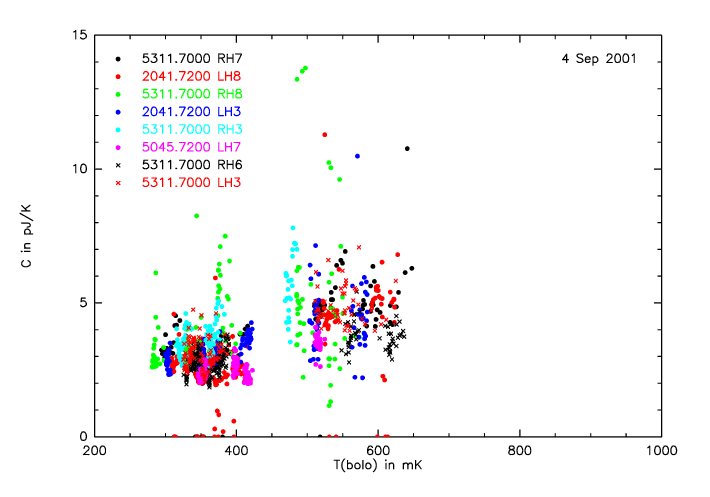

Heat Capacity Heat capacity measurements at GSFC
Compare to measurements at Caltech (blue symbols especially).

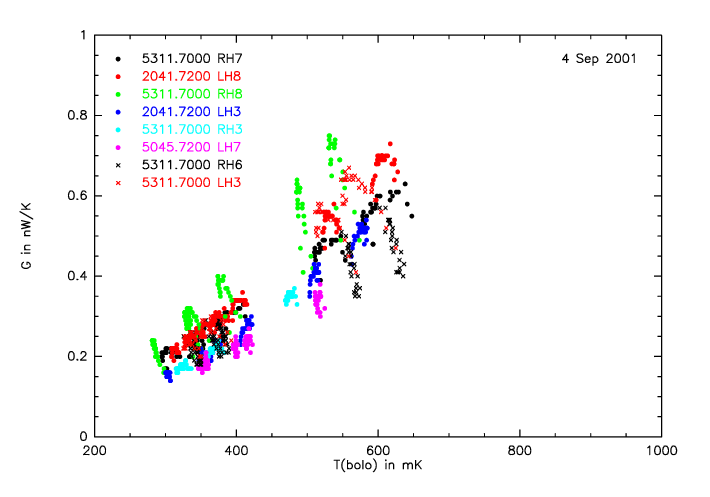

Thermal Conductance Thermal conductance measurements
Compare to measurements at Caltech (blue symbols especially).
